Quick Code: BB-369190
Cone 51 Shore 60 M16x2 With Fixation Flange
![Cone 51 Shore 60 M16x2 With Fixation Flange](https://thumbnails.bearingboys.co.uk/Cone_51_Shore_60_M16x2_With_Fixation_Flange-prod-369190-1.png)
![](https://thumbnails.bearingboys.co.uk/Cone_51_Shore_60_M16x2_With_Fixation_Flange-prod-369190-1.png)
The cones with fixation flange from AMC were designed to offer excellent axial elasticity under heavy loads. The elastomer used is a low dynamic stiffness compound, which makes it possible to obtain low natural frequencies thus maintaining excellent stability of the suspended unit.
The mounts radial stiffness is greater than the axial rate. This is particularly interesting for applications where horizontal stability needs to be maintained.
All models incorporate an interlocking metal part that acts as a FAILSAFE system. Thanks to this, and to the ruggedness of the metal parts, this mount is suitable for applications where the suspended unit is submitted to great shocks.
(The AMC-Mecanocaucho Cone 100 mount is supplied with a height adjuster. This makes it possible to easily align transmission shafts without having to use additional accessories to do so.)
Designed specially for use in engines and auxiliary machinery for static and mobile applications in all kinds of vehicles.

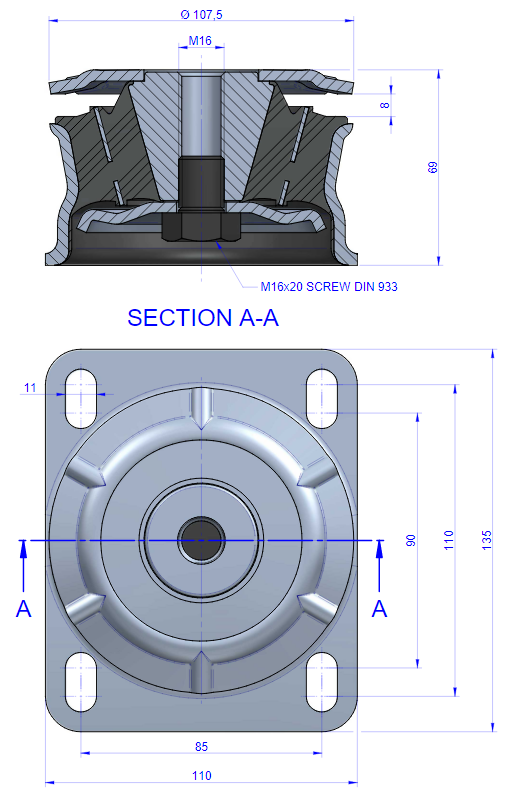

![](https://www.bearingboys.co.uk/uploads/CONE 51 M16X2 DIAGRAM.png)
