Bearings
Ball Transfer Units
Heavy Duty - Flange Mounted
Quick Code: BB-97225

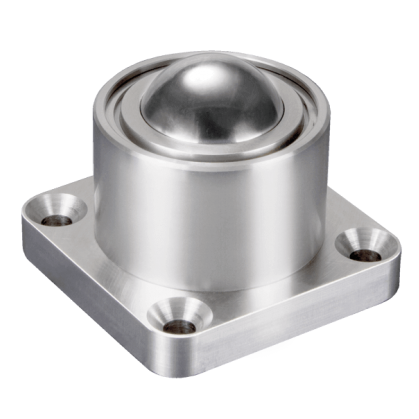

9220-SS Steel Ball Transfer Unit (Stainless Ball)
Buy Now
Qty:
Product Specification
B - See Diagram (mm)
41.3
Ball Dia (mm)
25.4
Bolt Hole Size - E (mm)
44.5
C - See Diagram (mm)
5.6
F - See Diagram (mm)
4.8
Flange Size - D (mm)
57.2
Load (kg)
225
Overall Body Dia - A (mm)
44
Reference
9220SS
Brand
OMNITRACK
Quick Order Code
BB-97225
Product Description
9920-SS Steel Ball Transfer Unit (Stainless Ball)
High capacity range, flange mounted ball transfer unit. All parts are stainless steel - outer housing AISI 304 and internal parts & ball AISI 440.
