Castors
Jacking Castors
Quick Code: BB-469992
125mm Polyurethane Nylon Plate Swivel Jacking Castor 250kg Load
![125mm Polyurethane Nylon Plate Swivel Jacking Castor 250kg Load](https://thumbnails.bearingboys.co.uk/Jacking_Castors-cat-871077-cat.png)
![](https://thumbnails.bearingboys.co.uk/Jacking_Castors-cat-871077-cat.png)
Buy Now
Qty:
Product Specification
Castor Height
157mm
Diameter
125mm
Load Capacity
250kg
To Suit Bolt Fixing
14mm
Tread
35mm
Reference
JAZ125NPB
Quick Order Code
BB-469992
Product Description
Zinc plated box jacking unit with side fitting plate and a 75mm lift fitted with a 125mm red polyurethane tyred nylon centred roller bearing wheel wheel with a load capacity of 250kg.
Please note: Jacking castors are rated on a different principal to other castors and we recommend the total lifted load is divided over just 2 jacking units. An extra safety point is when jacked up please beware of any obstacles as a sudden shock could result in the inner square tube bending around the outer tube.

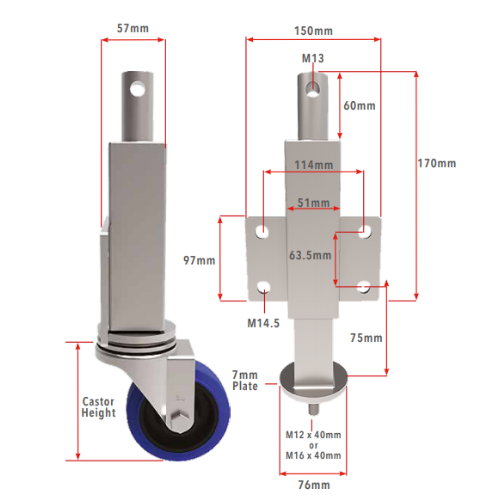

![](https://www.bearingboys.co.uk/uploads/JAZ125NPB tech dia.png)
