Castors
Jacking Castors
Quick Code: BB-469994
150mm Polyurethane Nylon Plate Swivel Jacking Castor 500kg Load
![150mm Polyurethane Nylon Plate Swivel Jacking Castor 500kg Load](https://thumbnails.bearingboys.co.uk/150mm_Polyurethane_Nylon_Plate_Swivel_Jacking_Castor_500kg_Load-prod-469994-1.png)
![](https://thumbnails.bearingboys.co.uk/150mm_Polyurethane_Nylon_Plate_Swivel_Jacking_Castor_500kg_Load-prod-469994-1.png)
Buy Now
Qty:

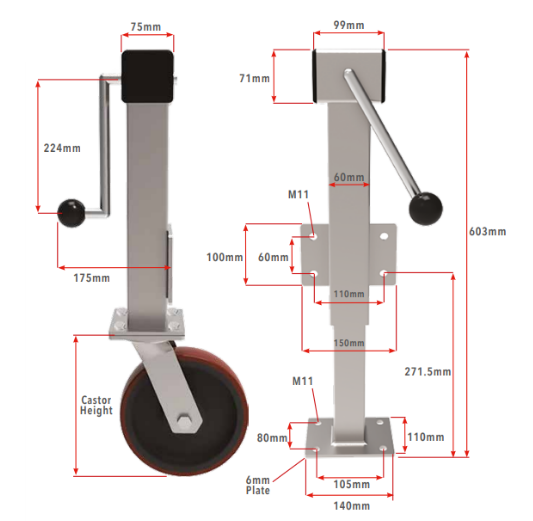

Product Specification
Castor Height
190mm
Diameter
150mm
Load Capacity
500kg
To Suit Bolt Fixing
10mm
Tread
40mm
Reference
JAZHS150NPB
Quick Order Code
BB-469994
Product Description
Side winding jacking unit with maximum lift of 200mm fitted with a fabricated swivel castor with a top plate fixing fitted with a red polyurethane tyre on a white nylon centred wheel with roller bearing bore.
Wheel diameter 150mm
Tread width 40mm
Maximum load for the complete unit is capacity 500kg
Please note jacking castors are rated on a different principal to other castors and we recommend the total lifted load is divided over just 2 jacking units.
When jacked up to the height please be aware of any obstacles as a sudden shock could result in the inner square tube bending around the outer tube.
DO NOT OVERWIND - Handle excessively more than what is needed as this will cause the pin in the gearbox to shear.
(This is a safety precaution against over loading the unit)
![](https://www.bearingboys.co.uk/uploads/JAZHS150NPB.png)
